원래 장소:
중국 저장
브랜드 이름:
chinwl
모델 번호:
Wanlian #:WL033A1-1.2-11 #: 1-1703494-1

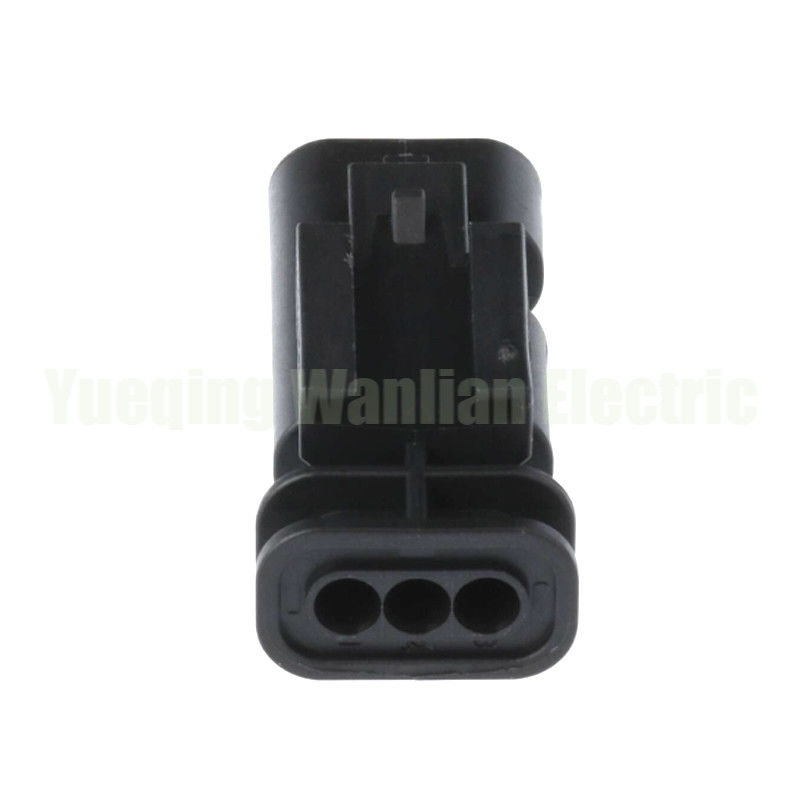

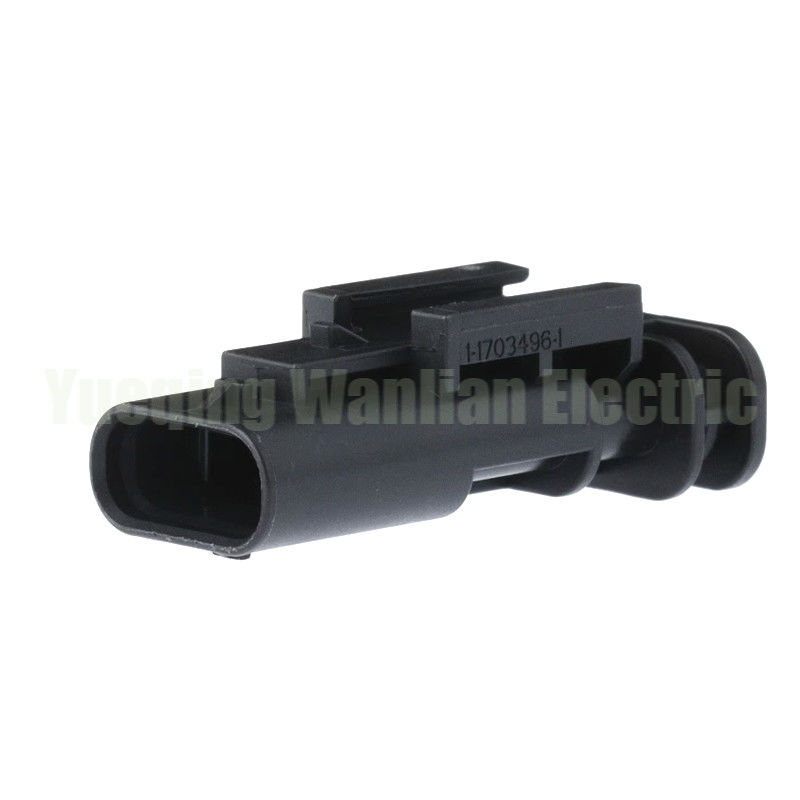

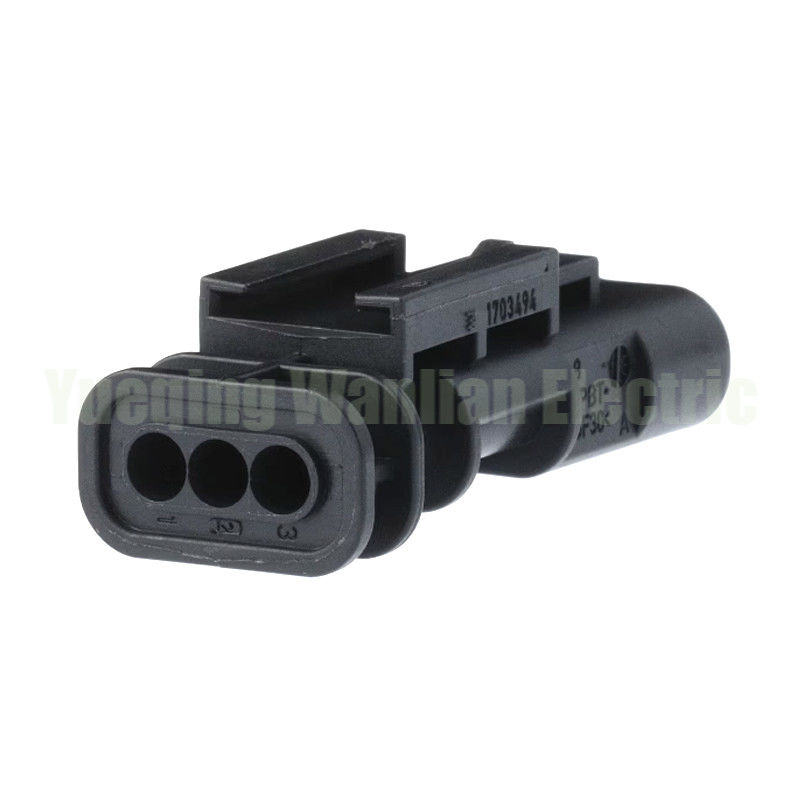

3 Pin 1-1703494-1 Waterproof Connector For Parking Sensor Electric Eye Plug
Product Quick Details:
3Pin Sensor Connector
1 Row 3 Way
Height : mm
Width : mm
Length : mm
weight: g
Each set include: 1 housing plug+3 terminal+3 wire seals
Housing: PA66/PBT/PBT+G,PA66+GF
Lock: PA66/PBT/PBT+G,PA66+GF
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubber
Product Specification:
| International P/N | 1-1703494-1 |
| WANLIAN P/N | WL033A1-1.2-11 |
| The number of pins | 3 pin |
| Type | Housing for Male Terminals |
| Wire Size | 18-22AWG |
| Include | terminal and seals |
| SAMPLE | FREE |
| Product Series | |
| Operating Temperature range | -40℃~125℃ |
| MOQ | 100 units/lot |
| Key words | 3 pin Sensor Connector |
| Design Tooling | Sending us samples or drawing to design it |
| Delivery Time | Moq about 3 work days .Enough stock and strong production capacity ensure timely delivery |
| Sealed/Unsealed | sealed |
| The number of hole | 3 way |
| Service: | BReplace JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Application | Automoive Motorcycles |
| Packaging | 100,200,300,500,1000PCS per bag with label,export standard carton. |
More detailes about our products:
1. We also can manufacture lots of these similar wire harness with very competitive price.
2. All kinds of Auto connectors' materials are RoHs Compliance
3. We also can supply all parts for wiring harness, such as connectors, terminals, seals, cables, bellows and so on.
4. We also can give you Mould Development service to supply you the items which you can not find directly in the corrent market.
5. Our connector are very popular in the world Market.They have been exported to France, U.S.A, Australia, Germany,Canada, Belgium,the Middle East, Taiwan, Thailand and so on.
Advantage:
1.Rich selection of connector, more than 100 experienced mould processing staff Equipment imported from Japan, Germany, Switzerland, Taiwan
2.Specializes in manufacturing connector more than 16 year as well as export the relevant component more than 8 years
3.Have long and Rich cooperation experience with Samsung, whirlpool, Midea
3.Have long and Rich cooperation experience with Samsung, whirlpool, Midea
4.Almost get all of the certification for connector ,such as UL,SGS, MSDS, CE, ISO9001,ROHS,REACH, CQC,TUV, PAHS, PFOS, PFOA ect.
5. replace JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. and short delivery
6.competitive price
7. Monthly average turnover is 2million USD
8.ISO 9001:2008-certified factory equipped with automated assembly lines
9.Custom-made orders welcome here
10.Sample take up to 3 days,but can be finished with one day in urgent cases
